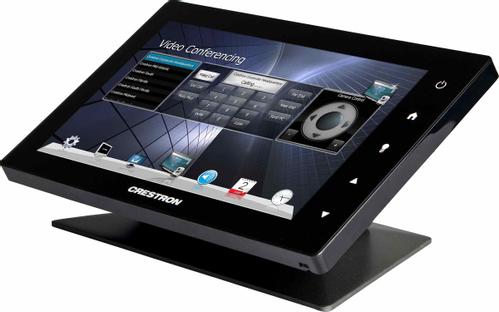

The TSW-750-TTK provides a stylish and convenient tabletop enclosure for a TSW-750 Touch Screen. The touch screen is angled when installed in the enclosure. The complete assembly may be placed on any flat, level surface.
An optional swivel mount accessory (TSW-550/750/1050-SMK) is available separately, providing a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.
Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6 mm) diameter such as standard CAT5. The bottom opening measures 29/32 inch (23 mm) diameter, while the swivel mount[1] can accommodate a bundle of wires up to 11/16 inch (17 mm) diameter.
Notes:
-
TSW-550/750/1050-SMK Swivel Mount Kit sold separately.
This product may be purchased from an authorized Crestron dealer. To find a dealer, please contact the Crestron sales representative for your area. A list of sales representatives is available online at www.crestron.com/salesreps or by calling 800-237-2041.
Specifications subject to change without notice. Crestron is not responsible for errors in typography or photography.
The specific patents that cover Crestron products are listed online at: patents.crestron.com.
