Video
|
|
Switcher
|
2x1 combination digital/analog switch, Crestron QuickSwitch HD®
|
|
Input Signal Types
|
HDMI®, DVI[2], DisplayPort Multimode[2], RGB, component (YPbPr)[3], S-Video (Y/C)[3], composite[3]
|
|
Output Signal Types
|
DM 8G+™ (DigitalMedia™ over one CAT5e twisted-pair copper wire)[1], HDBaseT™, HDMI, DVI[2]
|
|
Formats
|
HDMI, DVI, HDCP content protection support, computer up to UXGA/WUXGA, HD up to 1080p60, NTSC or PAL
|
|
Input Resolutions, HDMI & DVI, Progressive
|
640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165MHz pixel clock
|
|
Input Resolutions, HDMI & DVI, Interlaced
|
720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165MHz pixel clock
|
|
Input Resolutions, RGB
|
640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1152@60Hz
|
|
Input Resolutions, Component[3]
|
480i, 576i, 480p, 576p, 720p50, 720p60, 1080p24, 1080i25 (1125 lines), 1080i30, 1080p30, 1080p50 (1125 lines), 1080p60
|
|
Input Resolutions, Composite and S-Video[3]
|
480i, 576i
|
|
Output Resolutions
|
Matched to inputs
|
|
Analog-To-Digital Conversion
|
10-bit 165 MHz per each of 3 channels
|
Audio
|
|
Switcher
|
2x1 combination digital/analog switch
|
|
Input Signal Types
|
HDMI, DisplayPort Multimode[2], analog stereo
|
|
Output Signal Types
|
DM 8G+, HDBaseT, HDMI
|
|
Formats, HDMI
|
Dolby Digital®, Dolby Digital EX, DTS®, DTS-ES, DTS 96/24, Up to 8ch PCM
|
|
Formats, Analog
|
Stereo 2-channel
|
|
Analog-To-Digital Conversion
|
24-bit 48 kHz
|
|
Input Level Compensation (analog)
|
±10 dB
|
|
Performance (analog)
|
Frequency Response: 20Hz to 20kHz ±0.75dB;
S/N Ratio: >90dB, 20Hz to 20kHz A-weighted;
THD+N: <0.05% @ 1kHz;
Stereo Separation: >90dB
|
Communications
|
|
DigitalMedia
|
DM 8G+, HDCP management, EDID format management, CEC, PoDM, HDBaseT compliant
|
|
Ethernet
|
10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP
|
|
USB
|
Supports USB HID class devices
|

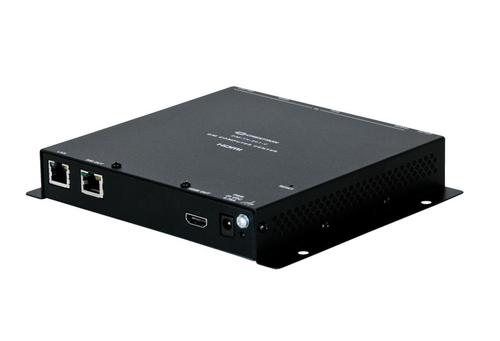

Connectors
|
|
LAN
|
(1) 8-wire RJ45 female, shielded;
10Base-T/100Base-TX Ethernet port
|
|
DM OUT
|
(1) 8-pin RJ45 female, shielded;
DM 8G+ output, HDBaseT compliant;
PoDM and PoH PD (Powered Device) port[4];
Connects to the DM 8G+ input of a DM switcher, receiver/room controller, or other DM device, or to a HDBaseT device, via CAT5e or Crestron DM-CBL-8G cable[1]
|
|
HDMI OUT
|
(1) 19-pin Type A HDMI female;
HDMI digital video/audio output;
Also supports DVI[2]
|
|
PWR 24VDC 0.75A
|
(1) 2.1 x 5.5 mm DC power connector;
24 Volt DC power input;
PW-2407WU power pack included
|
|
Ground
|
(1) 6-32 screw, chassis ground lug
|
|
USB HID
|
(1) USB Type B female;
USB 2.0 device port for connection to the USB host interface of a computer or other USB HID-compliant host
|
|

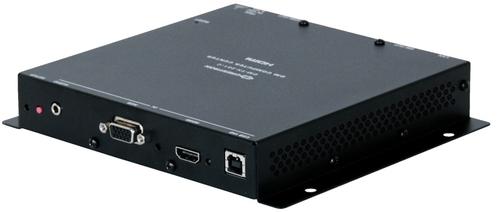

HDMI IN
|
(1) 19-pin Type A HDMI female;
HDMI digital video/audio input;
Also supports DVI and DisplayPort Multimode[2]
|
|
RGB IN
|
(1) DB15HD female;
RGB (VGA), component, S-Video, or composite video input[3];
Formats: RGBHV, RGBS, RGsB, YPbPr, Y/C, NTSC, PAL;
Input Levels: 0.5 to 1.5 Vp-p with built-in DC restoration;
Input Impedance: 75 Ohms;
Sync Input Type: Autodetect RGBHV, RGBS, RGsB, YPbPr;
Sync Input Level: 3 to 5 Vp-p;
Sync Input Impedance: 1k Ohms
|
|
AUDIO IN
|
(1) 3.5mm TRS mini phone jack;
Unbalanced stereo line-level audio input;
Input Level: 2 Vrms maximum;
Input Impedance: 10k Ohms
|
Controls & Indicators
|
|
LAN
|
(2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
|
|
DM OUT
|
(2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
|
|
PWR
|
(1) green LED, indicates operating power supplied via local power supply, PoDM, or PoH
|
|
HDMI IN
|
(1) green LED, indicates HDMI input is selected
|
|
RGB IN
|
(1) green LED, indicates RGB input is selected
|
|
SETUP
|
(1) red LED and (1) miniature recessed pushbutton for Ethernet setup
|
|
RESET
|
(1) miniature recessed pushbutton for hardware reset
|
Power Requirements
|
|
Power Pack
|
0.75 Amps @ 24 Volts DC;
100-240 Volts AC, 50/60 Hz power pack, model PW-2407WU included
|
|
Power over DM (PoDM)
|
PoDM PD (Powered Device), capable of being powered by a PoDM PSE (Power Sourcing Equipment)
|
|
Power over HDBaseT (PoH)
|
PoH PD (Powered Device), capable of being powered by a PoH PSE (Power Sourcing Equipment)
|
|
Note: May be powered via power pack or PoDM/PoH, not both.
|
Environmental
|
|
Temperature
|
32° to 104°F (0° to 40°C)
|
|
Humidity
|
10% to 90% RH (non-condensing)
|
|
Heat Dissipation
|
30 BTU/Hr
|
Enclosure
|
|
Chassis
|
Metal, black finish, with (2) integral mounting flanges, vented sides
|
|
Mounting
|
Freestanding, surface mount, or attach to a single rack rail
|
Dimensions
|
|
Height
|
6.47 in (165 mm)
|
|
Width
|
7.36 in (187 mm)
|
|
Depth
|
1.24 in (32 mm)
|
Weight
|
|
25.4 oz (721 g)
|
