Control Engine
|
|
|
Core 3 OS; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs
|
|
Memory
|
|
|
SDRAM
|
512 MB
|
|
|
Flash
|
4 GB
|
|
|
Memory Card
|
expandable storage up to 32 GB using MMC compatible card (not included)
|
|
|
External Storage
|
up to 1 TB using USB mass storage device (not included)
|
|
Communications
|
|
|
Ethernet
|
10/100 Mbps; auto-switching; auto-negotiating; auto-discovery; full/half duplex; industry-standard TCP/IP stack; UDP/IP; CIP; DHCP; SSL; IEEE 802.1X; SNMP; BACnet®/IP[1]; IPv4 or IPv6; Active Directory authentication; IIS v.6.0 Web Server; SMTP e-mail client; installer setup via Crestron Toolbox™ or MSIE[2]; supports all e-Control®, Core 3 UI™ XPanel, Crestron Mobile®, Crestron Fusion™ and RoomView® applications
|
|
|
Cresnet®
|
Cresnet master mode
|
|
|
USB
|
Supports USB HID and USB mass storage class devices via rear panel USB 2.0 host ports, supports computer console via front panel USB 2.0 device port
|
|
|
RS-232/422/485
|
For 2-way device control and monitoring, all ports support RS-232 up to 115.2k baud with software handshaking, one port also supports RS-422 or RS-485 and hardware handshaking
|
|
|
IR/Serial
|
Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
|
|

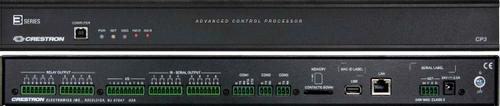

Connectors & Card Slots
|
|
|
RELAY OUTPUT 1 – 8
|
(2) 8-pin 3.5mm detachable terminal block comprising (8) normally open, isolated relays;
Rated 1 Amp, 30 Volts AC/DC;
MOV arc suppression across contacts
|
|
|
I/O 1 – 8
|
(1) 9-pin 3.5mm detachable terminal block comprising (8) “Versiport” digital input/output or analog input ports (referenced to GND);
Digital Input: Rated for 0-24 Volts DC, input impedance 20k Ohms, logic threshold >3.125V low/0 and <1.875V high/1;
Digital Output: 250mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads;
Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 21k ohms with pull-up resistor disabled;
Programmable 5 Volts, 2k ohms pull-up resistor per pin
|
|
|
IR - SERIAL OUTPUT 1 – 8
|
(2) 8-pin 3.5mm detachable terminal block comprising (8) IR/Serial output ports;
IR output up to 1.2 MHz;
1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud
|
|
|
COM 1
|
(1) 5-pin 3.5mm detachable terminal block;
Bidirectional RS-232/422/485 port;
Up to 115.2k baud; hardware and software handshaking support
|
|
|
COM 2 – 3
|
(2) 3-pin 3.5mm detachable terminal blocks;
Bidirectional RS-232 ports;
Up to 115.2k baud; software handshaking support
|
|
|
MEMORY
|
(1) MMC compatible card slot;
Accepts Multimedia Memory Cards (MMC) up to 32 GB for memory expansion
|
|
|
USB
|
(1) USB Type A female;
USB 2.0 port for storage devices
|
|
|
LAN
|
(1) 8-wire RJ45 jack;
10Base-T/100Base-TX Ethernet port
|
|
|
NET
|
(1) 4-pin 3.5mm detachable terminal block, Cresnet master port;
Outputs power to Cresnet devices if a power pack is connected to the 24VDC power input jack;
Receives Cresnet network power if no power pack is connected to the 24VDC power input jack;
See “Power Requirements” for additional specifications
|
|
|
24VDC 2.0A
|
(1) 2.1mm barrel DC power jack, 24 Volt DC power input;
PW-2420RU power supply included;
Passes through to NET port to power Cresnet devices;
See “Power Requirements” for additional specifications
|
|
|
G
|
(1) 6-32 screw, chassis ground lug
|
|
|
COMPUTER (front)
|
(1) USB Type B female;
USB 2.0 computer console port (6 ft cable included);
For setup only
|
|

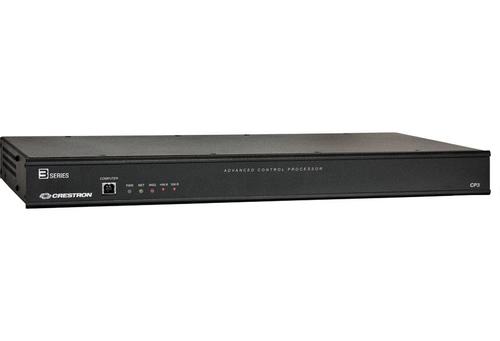

Controls & Indicators
|
|
|
PWR
|
(1) Green LED, indicates operating power supplied from power pack or Cresnet network
|
|
|
NET
|
(1) Amber LED, indicates communication with the Cresnet system
|
|
|
MSG
|
(1) Red LED, indicates control system has generated an error message
|
|
|
HW-R
|
(1) Recessed pushbutton for hardware reset
|
|
|
SW-R
|
(1) Recessed pushbutton for software reset
|
|
|
LAN (rear)
|
(2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
|
|
Power Requirements
|
|
|
Power Pack
|
2.0 Amps @ 24 Volts DC;
100-240 Volts AC, 50/60 Hz power pack, model PW-2420RU included
|
|
|
Available Cresnet Power
|
24 Watts (1 Amp @ 24 Volts DC) when using power pack
|
|
|
Cresnet Power Usage
|
15 Watts (0.625 Amp @ 24 Volts DC) when using Cresnet network power
|
|
Environmental
|
|
|
Temperature
|
41° to 113°F (5° to 45°C)
|
|
|
Humidity
|
10% to 90% RH (non-condensing)
|
|
|
Heat Dissipation
|
50 BTU/Hr
|
|
Enclosure
|
|
|
Chassis
|
Metal, black finish
|
|
|
Faceplate
|
Extruded metal, black finish, polycarbonate label overlay
|
|
|
Mounting
|
Freestanding or 1U 19-inch rack-mountable (adhesive feet and rack ears included)
|
|
Dimensions
|
|
|
Height
|
1.70 in (44 mm) without feet
|
|
|
Width
|
17.28 in (439 mm), 19.00 in (483 mm) with rack ears
|
|
|
Depth
|
6.56 in (167 mm)
|
|
Weight
|
|
|
3.12 lb (1.42 kg)
|
