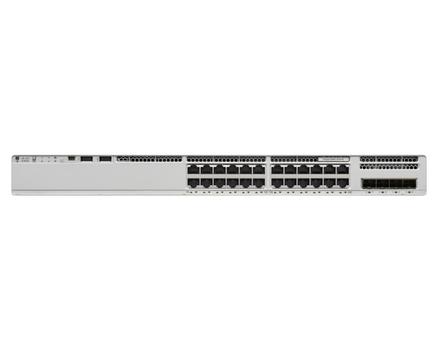

CISCO Catalyst 9200L 24 port PoE+ 4 x 10G Network Essentials (C9200L-24P-4X-E)
CISCO Catalyst 9200L 24 port PoE+ 4 x 10G Network Essentials (C9200L-24P-4X-E)
CISCO Catalyst 9200L 24 port PoE+ 4 x 10G Network Essentials (C9200L-24P-4X-E)
CISCO Catalyst 9200L 24 port PoE+ 4 x 10G Network Essentials (C9200L-24P-4X-E)

CISCO Catalyst 9200L 24 port PoE+ 4 x 10G Network Essentials

Varenr.:
C9200L-24P-4X-E
  • Produkt Ikke styrt
  • Porter 24
  • Hastighet 1Gbps
Intility: Ikke på lager Distributør: Forventet leveringsdato 03.12.2019

Extend Intent-Based Networking Everywhere

Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.

With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

- Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
- Flexible downlink options with data or PoE+
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
- Cisco Software-Defined Access (SD-Access):
- Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
- Network assurance and improved resolution time through Cisco DNA Center
- Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
- Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
- ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Styringsfunksjoner

SvitsjtypeUhåndtert
StrømbryterbeleggL3
Quality of Service (QoS) støtte
Webbasert administrasjon
Trafikk klassifisering
ARP-inspeksjon
Configuring Location Settings (CLI)
MIB-støtteBRIDGE-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-CONFIG-MAN-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-ERR-DISABLE-MIB, CISCO-FLASH-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-BFD-MIB, CISCO-IETF-PPVPN-MPLS-VPN-MIB, CISCO-IETF-PW-MPLS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-LICENSE-MGMT-MIB, CISCO-IMAGE-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IP-STAT-MIB, CISCO-IP-TAP-MIB, CISCO-IP-URPF-MIB, CISCO-IPSEC-FLOW-MONITOR-MIB, CISCO-IPSEC-MIB, CISCO-IPSEC-PROVISIONING-MIB, CISCO-IPSLA-AUTOMEASURE-MIB, CISCO-IPSLA-ECHO-MIB, CISCO-IPSLA-JITTER-MIB, CISCO-L2-CONTROL-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-LOCAL-AUTH-USER-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-MEDIA-METRICS-MIB, CISCO-MEMORY-POOL-MIB, CISCO-MPLS-LSR-EXT-STD-MIB, CISCO-NBAR-PROTOCOL-DISCOVERY-MIB, CISCO-NHRP-EXT-MIB, CISCO-NTP-MIB, CISCO-PAGP-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB ,CISCO-RTTMON-ICMP-MIB, CISCO-STACKWISE-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, ENTITY-MIB, HC-ALARM-MIB, HC-RMON-MIB, IEEE8023-LAG-MIB, IF-MIB, IP-FORWARD-MIB, IP-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, MAU-MIB, MPLS-L3VPN-STD-MIB, MPLS-LSR-STD-MIB, MPLS-VPN-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-CPU-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-MEMORY-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, POWER-ETHERNET-MIB, RFC1213-MIB, RMON-MIB, RMON2-MIB, SMON-MIB, SNMPv2-MIB, SONET-MIB, TCP-MIB, UDP-MIB

Tilkoblingsevne

Antall Basic switching RJ-45 Ethernet-ports24
Basic switching RJ-45 Ethernet ports-type10G Ethernet (100/1000/10000)
StrømtilkoblingAC-in jack

Nettverksbygging

NettverksstandardIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G støtte
Ethernet-kobberkabelteknologi10BASE-T,10GBASE-T,100BASE-TX,1000BASE-T
Full dupleks
IP-ruting
Rutingoppføringer3000
Strømningskontroll støtte
Treprotokoll (spekter)
VLAN støtte
Antall VLANs1024

Dataoverføring

Størrelse på adressetabell16000 oppføringer
Ruting/svitsjekapasitet128 Gbit/s
Videresendingshastighet95,23 Mpps
Jumbo Frames-støtte
Jumbo rammer9198
Pakke videresending rate (1 Gbps)95,23 pps
Pakke bufferminne4,1 MB

Sikkerhet

Access Control List (ACL)/tilgangskontrolliste
Sikkerhetsalgoritme støttet128-bit AES

Multicast-egenskaper

Multicast-støtte
MAC adresse tabell (multicast)1000 oppføringer
IPv4 Multicast-oppføringer3000
IPv6 Multicast-oppføringer1500

Protokoller

Ledelsesprotokoller/håndteringsprotokollerSNMPv1/v2c/v3
RouterprotokollCDP,EIGRP,OSPF,RIP,VRRP

Design

ProduktfargeGrå
Elektromagnetisk kompatibilitet47 CFR Part 15, CISPR 22 Class A, CISPR 32 Class A, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, KN 32, TCVN 7189 Class A, V-3 Class A, CISPR 24, EN 300 386, EN 55024, KN 35, TCVN 7317
ISV-sertifiseringerRoHS, IEC 60950-1, UL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950.1, Class I Equipment

Ytelse

MinnetypeDRAM
Internminne2000 MB
Flash-minne4000 MB

Energihåndtering

Strømforsyning medfølger
Antall strømforsyninger1
AC inngangspenning100 - 240 V
Vekselstrøm frekvens50 - 60 Hz
Innput-strøm12 - 6 A
Strømforbruk600 W
Strømforbruk (maks)740 W

Power over Ethernet (PoE)

Strøm over Ethernet (PoE)
Antall Power over Ethernet plus (PoE+)-ports24

Miljømessige forhold

Driftstemperaturområde-5 - 45 °C
Oppbevaringstemperaturomåde (Celsius)-40 - 70 °C
Luftfuktighetsområde ved drift5 - 90%
Driftshøyde0 - 3000 m

Vekt og dimensjoner

Bredde445 mm
Dybde288 mm
Høyde44 mm
Vekt4,71 kg

Datainnpakking

EmballasjetypeBoks
