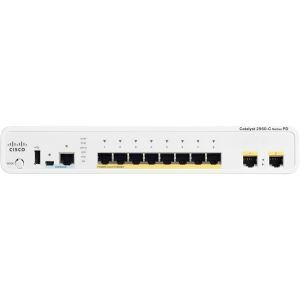

Name: CISCO - Catalyst 2960C 8GE 1xDual Up LAN Base
Brand: CISCO
SKU: 3881912
Availability: PreOrder

Cisco Catalyst 3560-C and 2960-C Series Compact Switches

The Cisco® Catalyst® 3560-C and 2960-C Series Compact Switches are small form-factor Fast Ethernet and Gigabit Ethernet switches designed for deployments outside the wiring closet. Enterprise and commercial customers can deliver advanced security services, unified communications, wireless, IP video cameras, and other applications for the office workspace, micro branch office, classroom, cruise ship, and other wiring-constrained environments.

Cisco Catalyst 3560-C and 2960-C Series highlights:
• PoE pass-through. An innovative feature and industry first for passing power from the compact switch to end devices.
• Media Access Control Security (MACsec) hardware-based encryption.
• Power over Ethernet Plus (PoE+) up to 30 W per port.
• USB and Console port for file backup, distribution, and simplified operations.
• Fanless for silent operation.
• Enhanced limited lifetime hardware warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90 day access to Cisco Technical Assistance Center (TAC) support.

Cisco Borderless Networks and Access Switching

Borderless Networks, a Cisco next-generation architecture, deliver the new workspace experience, connecting anyone, anywhere, using any device, to any resource - securely, reliably, transparently. The Cisco Borderless Networks architecture addresses primary IT and business challenges to help create a truly borderless experience by bringing interactions closer to the employee and customer. Innovations in switching help organizations deliver ease of operation, green efficiency, security, and performance to accelerate the way IT delivers and scales those services on the network. Figure 2 depicts the Cisco Borderless Network benefits.

Cisco Borderless Networks Primary Capabilities

• Sustainability: PoE pass-through to provide PoE to downlink ports using PoE or PoE+ switches in the wiring closet; Cisco EnergyWise to measure, report, and reduce energy usage across the entire organization
• Operational excellence: Cisco Catalyst Smart Operations
• Secure business: Intelligent features at the network edge for sophisticated access control lists (ACLs) and identity services with a wide range of authentication methods, data encryption, and Network Admission Control (NAC)-based technology
• Workspace experience: Network control and bandwidth optimization for granular rate limiting, ACLs, and multicast video services

Switch Configurations

Switch Model	Uplinks	Description
WS-C2960CPD-8TT-L	2 10/100/1000 PoE input ports	Cisco Catalyst 2960-C PSE Switch 8 FE, 2 x 1G, PoE+ LAN Base
WS-C2960CPD-8PT-L	2 10/100/1000 PoE input ports	Cisco Catalyst 2960-C PD PSE Switch 8 FE PoE, 2 x 1G, PoE+ LAN Base
WS-C2960CG-8TC-L	2 dual-purpose port (10/100/1000 or SFP)	Cisco Catalyst 2960-C Switch 8 GE, 2 x Dual Purpose Uplink, LAN Base
WS-C3560CG-8TC-S	2 dual-purpose port (10/100/1000 or SFP)	Cisco Catalyst 3560-C Switch 8 GE, 2 x Dual Purpose Uplink, IP Base
WS-C3560CG-8PC-S	2 dual-purpose port (10/100/1000 or SFP)	Cisco Catalyst 3560-C Switch 8 GE PoE, 2 x Dual Purpose, IP Base

Cisco Catalyst 3560-C and 2960-C Compact Series Software

The Cisco Catalyst 3560-C Series Compact Switches come IP Base and the Cisco Catalyst 2960-C Series Compact Switches come with LAN Base, neither switch can be upgraded.
The LAN Base feature set offers enhanced intelligent services that includes comprehensive Layer 2 features.
The IP Base feature set provides baseline enterprise services in addition to all LAN Base features. IP Base also includes the support for routed access, MACSec, and OSPF.

Cisco Networked Sustainability: Good for Business, Better for Environment

Together, Cisco EnergyWise technology and Cisco Catalyst Compact switches enable greenhouse gas (GhG) emissions reduction, increased energy cost savings, and sustainable business behavior.

• PoE pass-through gives the ability to power PoE end devices through drawing PoE from the wiring closet. The Cisco Catalyst 2960CPD-8PT-L has eight 10/100 ports with two PoE or PoE+ input ports to allow it to be powered by another switch. This switch does not need a power supply and receives power over the uplink from an upstream PoE device, providing deployment flexibility and availability. It is ideal for wiring and space-constraint applications.
• Cisco EnergyWise is an innovative architecture, added to the Cisco Catalyst 3560-C and 2960-C series compact switches, that enables the measurement of power consumption in the network infrastructure and network-attached devices. EnergyWise encompasses a highly intelligent network-based approach to communicate messages that measure and control energy between network devices and endpoints. The network discovers Cisco EnergyWise-manageable devices, monitors their power consumption, and takes action based on business rules to reduce power consumption.
• Efficient switch operation: Cisco Catalyst 3560-C and 2960-C series compact switches use hardware components created by Cisco providing optimum power saving, low-power operations for industry best-in-class power management, and power consumption capabilities. The Cisco Catalyst 3560-C ports are capable of reduced power modes so that ports not in use can move into a lower power utilization state.
• IEEE 802.3at or PoE+ available on the Cisco Catalyst 3560-C is the latest in PoE technology, allowing capable devices to be powered with power output up to 30 watts per port. Table 2 outlines switch models and power capacity for the Cisco Catalyst 3560-C and 2960-C series compact switches.

Switch PoE and PoE+ Power Capacity

Switch Model	Powering Options	Available POE Power(W)
WS-C2960CPD-8PT-L	1 P0E Uplink	0
WS-C2960CPD-8PT-L	2 PoE Uplinks	7
WS-C2960CPD-8PT-L	1 PoE+ Uplinks	7
WS-C2960CPD-8PT-L	1 POE+ and 1 POE Uplinks	15.4
WS-C2960CPD-8PT-L	2 PoE+ Uplinks	22.4
WS-C2960CPD-8PT-L	Auxiliary Input	22.4
WS-C3560CG-8PC	Internal Power Supply	124

Cisco Operational Excellence: Reducing Operating Costs

Cisco Catalyst 3560-C and 2960-C series compact switches make deployment easy: reduce switch installation, configuration, troubleshooting time, and operational costs.

• Cisco Catalyst Smart Operations is a set of features to enhance operational excellence
– Cisco Smart Install is a transparent plug-and-play technology to configure the Cisco IOS® Software image and switch configuration without user intervention. Smart Install utilizes dynamic IP address allocation and the assistance of other switches to facilitate installation, providing transparent network plug and play.
– Cisco Auto SmartPorts provides automatic configuration as devices connect to the switch port, allowing autodetection and plug and play of the device onto the network. It configures the port with predefined configurations encapsulating years of Cisco networking expertise, including security, IP telephony, availability, QoS, and manageability features with minimal effort and expertise.
– Cisco Smart Configuration provides a single point of management for a group of switches and in addition adds the ability to archive and back up configuration files to a file server or switch. A group of switches can be upgraded or configured from a single point in the network.
– USB file storage and console for file backup, distribution, and simplified operations allow the user to back up and boot from a USB device and allow for Mini USB console access along with traditional RS-232 console connectivity.
– Cisco Smart Troubleshooting is an extensive array of debug diagnostic commands and system health checks within the switch including Generic Online Diagnostics (GOLD).
• Easy-to-Use Deployment and Control Features
– Automatic QoS (AutoQoS) simplifies QoS configuration in voice over IP (VoIP) networks by issuing interface and global switch commands to detect Cisco IP phones, classify traffic, and help enable egress queue configuration.
– Dynamic Host Configuration Protocol (DHCP) autoconfiguration of multiple switches through a boot server eases switch deployment.
– Auto-Negotiation on all ports automatically selects half- or full-duplex transmission mode to optimize bandwidth.
– Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.
– Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel® groups or Gigabit EtherChannel groups to link to another switch, router, or server.
– Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with devices that conform to IEEE 802.3ad. This feature is similar to Cisco EtherChannel technology and PAgP.
– Automatic Media-Dependent Interface Crossover (MDIX) automatically adjusts transmit and receive pairs if an incorrect cable type (crossover or straight-through) is installed.
– Unidirectional Link Detection Protocol (UDLD) and Aggressive UDLD allow unidirectional links caused by incorrect fiber-optic wiring or port faults to be detected and disabled on fiber-optic interfaces.
– Switching Database Manager (SDM) templates for access, routing, and VLAN deployment allow the administrator to easily maximize memory allocation to the desired features based on deployment-specific requirements.
– Local Proxy Address Resolution Protocol (ARP) works in conjunction with Private VLAN Edge to minimize broadcasts and maximize available bandwidth.
– Internet Group Management Protocol (IGMP) Snooping for IPv4 and IPv6 MLD v1 and v2 Snooping provide fast client joins and leaves of multicast streams and limit bandwidth-intensive video traffic to only the requestors.
– Multicast VLAN Registration (MVR) continuously sends multicast streams in a multicast VLAN while isolating the streams from subscriber VLANs for bandwidth and security reasons.
– Per-port Broadcast, Multicast, and Unicast Storm Control prevents faulty end stations from degrading overall systems performance.
– Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting.
– Cisco VLAN Trunking Protocol (VTP) supports dynamic VLANs and dynamic trunk configuration across all switches.
– Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from any other switch in the same network.
– For enhanced traffic management, monitoring, and analysis, the Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
– Layer 2 Traceroute eases troubleshooting by identifying the physical path that a packet takes from source to destination.
– Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location.
– Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches.

Advanced, Intelligent Network Management Tools

The Cisco Catalyst 3560-C and 2960-C Series Compact Switches offer both the traditional Cisco CLI for detailed configuration and Cisco Network Assistant software, a PC-based tool for quick configuration based on preset templates. In addition, CiscoWorks LAN Management Solution (LMS) supports the Cisco Catalyst 3560-C and 2960-C Series Compact Switches for networkwide management.

CiscoWorks LAN Management Solution

CiscoWorks LAN Management Solution (LMS) is a comprehensive network lifecycle management solution. It provides an extensive library of easy-to-use features to automate the initial and day-to-day management of your Cisco network infrastructure. CiscoWorks LMS uniquely uses Cisco hardware and software platform knowledge and operational experience into a powerful set of workflow-driven configuration, monitoring, troubleshooting, reporting, and administrative tools. Including:

• Support for new Cisco hardware platforms the day they ship
• Support for new technologies and services from initial deployment to day-to-day administration and management, such as EnergyWise, Identity, Cisco Auto Smartports, Cisco Smart Install, and much more
• Configuration management tools built from Cisco experience and Cisco Validated Design recommendations
• Monitoring and troubleshooting capabilities that incorporates Cisco hardware best practices and diagnostics features
• Automation in managing hardware inventories, security vulnerabilities (PSIRTS), and platform end-of-life and support cycles

Enhanced Work Space Experience for End Users

Borderless Security

The Cisco Catalyst Compact Series Switches provide superior Layer 2 threat defense capabilities for mitigating man-in-the-middle attacks (such as MAC, IP, and ARP spoofing). TrustSec, a primary element of Borderless Security Architecture, helps enterprise customers secure their networks, data and resources with policy-based access control, identity and role-aware networking, pervasive integrity, and confidentiality.

The borderless security is enabled by the following feature sets in the Cisco Catalyst 3560-C and 2960-C Compact Series Switches:
• Threat defense
• Cisco TrustSec
• Other advanced security features

Threat Defense
Cisco Integrated Security Features is an industry-leading solution available on Cisco Catalyst Switches that proactively protects your critical network infrastructure. Delivering powerful, easy-to-use tools to effectively prevent the most common and potentially damaging Layer 2 security threats, Cisco Integrated Security Features provides robust security throughout the network. Cisco Integrated Security Features include Port Security, DHCP Snooping, Dynamic ARP Inspection, and IP Source guard.
• Port Security secures the access to an access or trunk port based on MAC address. It limits the number of learned MAC addresses to deny MAC address-flooding.
• DHCP Snooping prevents malicious users from spoofing a DHCP server and sending out bogus addresses. This feature is used by other primary security features to prevent a number of other attacks such as ARP poisoning.
• Dynamic ARP Inspection (DAI) helps ensure user integrity by preventing malicious users from exploiting the insecure nature of the ARP protocol (3560-C Only).
• IP source guard prevents a malicious user from spoofing or taking over another user's IP address by creating a binding table between the client's IP and MAC address, port, and VLAN (3560-C Only).

Cisco TrustSec
TrustSec secures access to the network, enforces security policies, and delivers standard based security solutions such as 802.1X enabling secure collaboration and policy compliance. TrustSec capabilities reflect Cisco thought leadership, innovations, and commitment to customer success. These new capabilities include:
• IEEE 802.1AE MACsec with prestandard 802.1X-REV Key management: industry's first fixed switches with prestandard 802.1X-Rev key management. Available on Cisco Catalyst 3560-C Series Switches, MACsec provides Layer 2, line rate Ethernet data confidentiality and integrity on host facing ports, protecting against man-in-the-middle attacks (snooping, tampering, and replay).
• Flexible authentication that supports multiple authentication mechanisms including 802.1X, MAC Authentication Bypass and web authentication using a single, consistent configuration.
• Open mode that creates a user friendly environment for 802.1X operations.
• Integration of device profiling technology and guest access handling with Cisco switching to significantly improve security while reducing deployment and operational challenges.
• RADIUS Change of Authorization and Downloadable Calls for comprehensive policy management capabilities.
• 802.1X Supplicant with Network Edge Access Transport (NEAT) enables extended secure access where compact switches in the conference rooms have the same level of security as switches inside the locked wiring closet.

Other Advanced Security Features
Other Advanced Security features include but are not limited to:
• Private VLAN Edge provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users' traffic.
• Multidomain Authentication allows an IP phone and a PC to authenticate on the same switch port while placing them on appropriate voice and data VLAN.
• Port-Based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.
• Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSH Protocol, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.
• Bidirectional data support on the Switched Port Analyzer (SPAN) port allows Cisco Intrusion Detection System (IDS) to take action when an intruder is detected.
• TACACS+ and RADIUS Authentication facilitates centralized control of the switch and restricts unauthorized users from altering the configuration.
• MAC Address Notification allows administrators to be notified of users added to or removed from the network.
• Multilevel Security on Console Access prevents unauthorized users from altering the switch configuration.
• Bridge Protocol Data Unit (BPDU) Guard shuts down Spanning Tree PortFast-enabled interfaces when BPDUs are received to avoid accidental topology loops.
• Spanning Tree Root Guard (STRG) prevents edge devices not in the network administrator's control from becoming Spanning Tree Protocol root nodes.
• IGMP Filtering provides multicast authentication by filtering out nonsubscribers and limits the number of concurrent multicast streams available per port.
• Dynamic VLAN Assignment is supported through implementation of VLAN Membership Policy Server client capability to provide flexibility in assigning ports to VLANs. Dynamic VLAN facilitates the fast assignment of IP addresses

Cisco Catalyst 3560-C and 2960-C Series Compact Switch Hardware

Description	Specification
Performance				Cisco Catalyst 3560-C		Cisco Catalyst 2960-C
	Forwarding Bandwidth			10 Gbps		10 Gbps
	Flash memory			64 MB		64 MB
	Memory DRAM			128 MB		128 MB
	Max VLANs			255		255
	VLAN IDs			4K		4K
	Maximum transmission unit (MTU)			Up to 9000 bytes		Up to 9000 bytes
	Jumbo frames			9018 bytes		9018 bytes
	Forwarding rate 64 Byte Packet Cisco Catalyst 3560-C
	WS-C3560CG-8TC-S			13.2 mpps
	WS-C3560CG-8PC-S			13.2 mpps
	Forwarding rate 64 Byte Packet Cisco Catalyst 2960-C
	WS-C2960CG-8TC-L			13.2 mpps
	WS-C2960CPD-8PT-L			3.8 mpps
	WS-C2960CPD-8TT-L			3.8 mpps
	Resource Cisco Catalyst 3560-C, 2960-C			Default		Routing
	Unicast MAC addresses			8000		4000
	IGMP groups and multicast routes			250		250
	Unicast routes			750		875
	Directly connected hosts			250		750
	Indirect routes			750		875
	QoS classification ACEs			125		375
	Security ACEs			375		375
	VLANs			255		255
Connectors and cabling	Cisco Catalyst 3560-C and 2960-C with SFP-based ports: • 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling • 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling • 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling • 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling • 1000BASE-SX -LX/LH, -ZX, -BX, -T^, -FX^, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber) • 100BASE-LX, -BX, -FX: SFP-based ports: LC fiber connectors (single/multimode fiber) ^*GLC-T and GLC-GE-100FX are not supported For the complete list of SFP's supported please see: http://www.cisco.com/en/US/docs/interfaces_modules/transceiver_modules/compatibility/matrix/OL_6981.html
Power connectors	• Customers can provide power to a switch only by using the internal power supply (2960CPD-8TT-L and 2960CPD-8PT-L do not require a power supply). The connector is located at the back of the switch. The internal power supply is an autoranging unit. • The internal power supply supports input voltages between 100 and 240VAC. • Use the supplied AC power cord to connect the AC power connector to an AC power outlet. Note: The Cisco Catalyst 2960CPD-8TT-L and 2960CPD-8TT-L has an option for an external power adapter if desired.
Indicators	• Per-port status: Link integrity, disabled, activity, speed, full-duplex • System status: System, RPS, link status, link duplex, link speed
Dimensions (H x W x D)	Cisco Catalyst 2960-C		Inches	Centimeters
	WS-C2960CPD-8TT-L		1.75x10.6x6.8	44.4x269x172
	WS-C2960CPD-8PT-L		1.75x10.6x6.8	44.4x269x172
	WS-C2960CG-8TC-L		1.75x10.6x8.4	44.4x269x213
	Cisco Catalyst 3560-C		Inches	Centimeters
	WS-C3560CG-8TC-S		1.75x10.6x8.4	44.4x269x213
	WS-C3560CG-8PC-S		1.75x10.6x9.4	44.4x269x238
Weight	Cisco Catalyst 2960-C		Pounds	Kilograms
	WS-C2960CPD-8TT-L		2.4	1.08
	WS-C2960CPD-8PT-L		2.4	1.08
	WS-C2960CG-8TC-L		3.0	1.35
	Cisco Catalyst 3560-C		Pounds	Kilograms
	WS-C3560CG-8TC-S		3.0	1.35
	WS-C3560CG-8PC-S		4.25	1.92
Environmental ranges			Cisco Catalyst 3560-C	Cisco Catalyst 2960-C
	Operating* temperature up to 5000 ft (1524 m)		-5°C to + 40°C	+23°F to + 104°F	-5°C to +40°C			+23°F to +104°F
	Operating* temperature up to 10,000 ft (3048 m)		-5°C to +40°C	+23°F to +104°F	-5°C to +40°C			+23°F to +104°F
	Storage temperature up to 15,000 ft (4572 m)		-25°C to +70°C	-13°F to +158°F	-25°C to +70°C			-13°F to +158°F
	Operating altitude		Up to 3048 m	Up to 10,000 ft	Up to 3048 m			Up to 10,000 ft
	Storage altitude		Up to 4000 m	Up to 15,000 ft	Up to 4000 m			Up to 15,000 ft
	Operating relative humidity		5% to 95% noncondensing		5% to 95% noncondensing
	Storage relative humidity		5% to 95% noncondensing		5% to 95% noncondensing
	* Minimum ambient temperature for cold start is 0°C (+32°F).
Acoustic noise	ISO 7779 and ISO 9296: Bystander positions operating to an ambient temperature of 25°C
	Model	Sound pressure LpA (Typical)		Model			Sound pressure LpA (Typical)
	Cisco Catalyst 3560-C	0dB (fanless)		Cisco Catalyst 2960-C			0dB (fanless)
Mean time between failure (MTBF)	Cisco Catalyst 3560-C	MTBF		Cisco Catalyst 2960-C			MTBF
	3560CG-8PC-S	355,830		2960CPD-8PT-L			346,590
	3560CG-8TC-S	488,549		2960CPD-8TT-L			471,888
				2960CG-8TC-L			542,482

Power Specifications for Cisco Catalyst 3560-C and 2960-C Series Compact Switch

Description

Specification

Measured 100% throughput power consumption

Cisco Catalyst 3560-C

Switch Power Consumption Watts

Cisco Catalyst 2960-C

Switch Power Consumption Watts

3560CG-8PC-S

23.9W

2960CG-8TC-L

17.6W

3560CG-8TC-S

18.4W

2960CPD-8PT-L

Single Uplink = 12W1

Dual Uplink = 15W1

2960CPD-8TT-L

Single Uplink = 12W1

Dual Uplink = 15W1

Measured 5% throughput power consumption

Cisco Catalyst 3560-C

Switch Power Consumption Watts

Cisco Catalyst 2960-C

Switch Power Consumption Watts

3560CG-8PC-S

23.9W

2960CG-8TC-L

18W

3560CG-8TC-S

18.4W

2960CPD-8PT-L

Single Uplink = 12W1

Dual Uplink = 15W1

2960CPD-8TT-L

Single Uplink = 12W1

Dual Uplink = 15W1

Measured 100% throughput power consumption (with maximum possible PoE loads)

Cisco Catalyst 3560-C

Switch Power Consumption Watts

Cisco Catalyst 2960-C

Switch Power Consumption Watts

3560CG-8PC-S

158W

2960CPD-8TT-L

43W

AC/DC input voltage and current

Cisco Catalyst 3560-C

Cisco Catalyst 2960-C

I/P Voltage

I/P Current

I/P voltage

I/P Current

3560CG-8PC-S

100-240 VAC

1.7-0.9A

2960CG-8TC-L

100-240 VAC

0.3-0.15A

3560CG-8TC-S

100-240 VAC

0.3-0.15A

2960CPD-8PT-L

100-240 VAC

.01-.6A

2960CPD-8TT-L

100-240 VAC

.01-.6A

Power rating

Cisco Catalyst 3560-C

Cisco Catalyst 2960-C

Watts

KVA

BTU

Watts

KVA

BTU

3560CG-8PC-S

158

0.2

539

2960CG-8TC-L

17.6

0.02

3560CG-8TC-S

18.4

0.02

2960CPD-8PT-L

.05

174

2960CPD-8TT-L

.05

174

Power measurement are best and worst case. Best Case is 1 PoE Connection. Worst case is 2 PoE+ connections.

PoE and PoE+

• Maximum power supplied per Port for PoE+ is 30 W

• Maximum power supplied per port for PoE: 15.4 W

Management and Standards Support for Cisco Catalyst 3560-C and 2960-C Series Compact Switch

Description	Specification
Management	• BRIDGE-MIB • CISCO-CABLE-DIAG-MIB • CISCO-CDP-MIB • CISCO-CLUSTER-MIB • CISCO-CONFIG-COPY-MIB • CISCO-CONFIG-MAN-MIB • CISCO-DHCP-SNOOPING-MIB • CISCO-ENTITY-VENDORTYPE-OID-MIB • CISCO-ENVMON-MIB • CISCO-ERR-DISABLE-MIB • CISCO-FLASH-MIB • CISCO-FTP-CLIENT-MIB • CISCO-IGMP-FILTER-MIB • CISCO-IMAGE-MIB • CISCO-IP-STAT-MIB • CISCO-LAG-MIB • CISCO-MAC-NOTIFICATION-MIB • CISCO-MEMORY-POOL-MIB • CISCO-PAGP-MIB • CISCO-PING-MIB • CISCO-POE-EXTENSIONS-MIB • CISCO-PORT-QOS-MIB • CISCO-PORT-SECURITY-MIB • CISCO-PORT-STORM-CONTROL-MIB • CISCO-PRODUCTS-MIB • CISCO-PROCESS-MIB • CISCO-RTTMON-MIB • CISCO-SMI-MIB • CISCO-STP-EXTENSIONS-MIB • CISCO-SYSLOG-MIB	• CISCO-TC-MIB • CISCO-TCP-MIB • CISCO-UDLDP-MIB • CISCO-VLAN-IFTABLE • RELATIONSHIP-MIB • CISCO-VLAN-MEMBERSHIP-MIB • CISCO-VTP-MIB • ENTITY-MIB • ETHERLIKE-MIB • IEEE8021-PAE-MIB • IEEE8023-LAG-MIB • IF-MIB • INET-ADDRESS-MIB • OLD-CISCO-CHASSIS-MIB • OLD-CISCO-FLASH-MIB • OLD-CISCO-INTERFACES-MIB • OLD-CISCO-IP-MIB • OLD-CISCO-SYS-MIB • OLD-CISCO-TCP-MIB • OLD-CISCO-TS-MIB • RFC1213-MIB • RMON-MIB • RMON2-MIB • SNMP-FRAMEWORK-MIB • SNMP-MPD-MIB • SNMP-NOTIFICATION-MIB • SNMP-TARGET-MIB • SNMPv2-MIB • TCP-MIB • UDP-MIB • ePM MIB
Standards	• IEEE 802.1D Spanning Tree Protocol • IEEE 802.1p CoS Prioritization • IEEE 802.1Q VLAN • IEEE 802.1s • IEEE 802.1w • IEEE 802.1x • IEEE 802.1AB (LLDP) • IEEE 802.3ad • IEEE 802.3af • IEEE 802.3ah (100BASE-X single/multimode fiber only) • IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports • IEEE 802.3 10BASE-T specification • IEEE 802.3u 100BASE-TX specification • IEEE 802.3ab 1000BASE-T specification • IEEE 802.3z 1000BASE-X specification	• 100BASE-BX (SFP) • 100BASE-FX (SFP) • 100BASE-LX (SFP) • 1000BASE-BX (SFP) • 1000BASE-SX (SFP) • 1000BASE-LX/LH (SFP) • 1000BASE-ZX (SFP) • 1000BASE-CWDM SFP 1470 nm • 1000BASE-CWDM SFP 1490 nm • 1000BASE-CWDM SFP 1510 nm • 1000BASE-CWDM SFP 1530 nm • 1000BASE-CWDM SFP 1550 nm • 1000BASE-CWDM SFP 1570 nm • 1000BASE-CWDM SFP 1590 nm • 1000BASE-CWDM SFP 1610 nm • RMON I and II standards • SNMPv1, SNMPv2c, and SNMPv3
RFC compliance	• RFC 768: UDP • RFC 783: TFTP • RFC 791: IP • RFC 792: ICMP • RFC 793: TCP • RFC 826: ARP • RFC 854: Telnet • RFC 951: Bootstrap Protocol • RFC 1542: BOOTP Extensions • RFC 959: FTP • RFC 1058: RIP Routing • RFC 1112: IP Multicast and IGMP • RFC 1157: SNMPv1 • RFC 1163: BGP Routing • RFC 1166: IP Addresses • RFC 1253: OSPF Routing • RFC 1256: ICMP Router Discovery • RFC 1267: BGP Routing • RFC 1305: NTP • RFC 1492: TACACS+ • RFC 1493: Bridge MIB • RFC 1542: Bootstrap Protocol • RFC 1583: OSPFv2 • RFC 1643: Ethernet Interface MIB • RFC 1723: RIPv2 Routing • RFC 1757: RMON	• RFC 1812: IP Routing • RFC 1901: SNMPv2C • RFC 1902-1907: SNMPv2 • RFC 1981: MTU Path Discovery IPv6 • FRC 2068: HTTP • RFC 2080: RIP for IPv6 • RFC 2131: DHCP • RFC 2138: RADIUS • RFC 2233: IF MIB • RFC 2236: IP Multicast • RFC 2328: OSPFv2 • RFC 2362: PIM Sparse Mode • RFC 2273-2275: SNMPv3 • RFC 2373: IPv6 Aggregatable Addrs • RFC 2453: RIPv2 Routing • RFC 2460: IPv6 protocol • RFC 2461: IPv6 Neighbor Discovery • RFC 2462: IPv6 Autoconfiguration • RFC 2463: ICMP IPv6 • RFC 2474: DiffServ Precedence • RFC 2597: Assured Forwarding • RFC 2598: Expedited Forwarding • RFC 2571: SNMP Management • RFC 2740: OSPF for IPv6 • RFC 3046: DHCP Relay Agent Information Option • RFC 3101, 1587: NSSAs • RFC 3376: IGMPv3 • RFC 3580: 802.1x RADIUS • RFC 4271, 1771: BGP Routing

Safety and Compliance

Description	Specification
Safety standards	• UL 60950-1 • CAN/CSA 22.2 No. 60950-1 • EN 60950-1 • IEC 60950-1 • CE Marking • GB 4943 • IEC 60825
Electromagnetic emissions certifications	• FCC Part 15, CFR 47, Class A, North America • EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union • AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand • VCCI Class A, V-3/2007.04, Japan KCC (formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea • ANATEL, Brazil • CCC, China • GOST, Russia
Environmental	Reduction of Hazardous Substances (ROHS) 6
Telco	Common Language Equipment Identifier (CLEI) code

Styringsfunksjoner
Svitsjtype	Håndtert
Strømbryterbelegg	L2
Quality of Service (QoS) støtte	Ja
Tilkoblingsevne
Antall Basic switching RJ-45 Ethernet-ports	11
Fiberoptisk kontakt	LC
Nettverksbygging
10G støtte	Nei
Ethernet-kobberkabelteknologi	1000BASE-T,100BASE-TX,10BASE-T
IP-ruting	Ja
Linkaggregasjon/Linksamling	Ja
Kringkasting stormkontroll	Ja
Omfangsbegrensning	Ja
Auto MDI/MDI-X	Ja
Treprotokoll (spekter)	Ja
Antall VLANs	255
Optical fiber
Ethernet-fiberkabelteknologi	1000BASE‑LH,1000BASE‑LX,1000BASE‑SX,1000BASE‑ZX,100BASE-BX,100BASE-FX,100BASE-LX
Fibertype	Multi-modus
Bølgelengde	1610 nm
Dataoverføring
Størrelse på adressetabell	4000 oppføringer
Datahastighet	10/100/1000 Mbps
Maksimal dataoverføringshastighet	13,2 Gbit/s
Jumbo Frames-støtte	Ja
Sikkerhet
DHCP features	DHCP server,DHCP client
Access Control List (ACL)/tilgangskontrolliste	Ja
IGMP-snooping	Ja
MAC adressefiltrering	Ja
SSH/SSL støtte	Ja
Multicast-egenskaper
Multicast-støtte	Ja
Protokoller
Ledelsesprotokoller/håndteringsprotokoller	IPv4, IPv6 MLD v1/v2, SNMP v3
Switch-protokoll	IPv6
Design
Stablingsbar	Ja
LED-indikatorer for kommunikasjon	Ja
Sikkerhet	UL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GB 4943, IEC 60825
ISV-sertifiseringer	FCC 15, CFR 47 A, EN 55022 (CISPR22), EN 55024 (CISPR24), CE marking, AS/NZS A, CISPR22:2004, EN55022, VCCI A, V-3/2007.04, KCC A, KN24/KN22, ANATEL, CCC, GOST, RoHs 6, CLEI
Ytelse
Internminne	128 MB
Flash-minne	64 MB
Gjennomsnittlig tid mellom feil	542482 timer
Energihåndtering
Innput-strøm	0.15 - 0.3 A
Strømforbruk	18 W
Power over Ethernet (PoE)
Strøm over Ethernet (PoE)	Nei
Miljømessige forhold
Driftstemperaturområde	-5 - 40 °C
Oppbevaringstemperaturomåde (Celsius)	-25 - 70 °C
Luftfuktighetsområde ved drift	5 - 95%
Luftfuktighet, uvirksom	5 - 95%
Driftshøyde	0 - 3048 m
Høyde når uvirksom	0 - 4000 m
Maks. driftstemperatur, våt pære (Fahrenheit)	23 - 104 °F
Varmespredning	60 BTU/t
Vekt og dimensjoner
Vekt	1,35 kg
Andre funksjoner
Fysiske mål (BxDxH)	269 x 213 x 44,4 mm
Tilkoblingsteknologi	Koblet med ledninger (ikke trådløs)
Største båndbredde for port	10 Gbit/s
Nettverksgrensesnitt	Gigabit Ethernet
Strøm LED	Ja
Innput-frekvens	50/60 Hz
Strømstyrke	100 - 240 V
Vekt (britisk)	1,36 kg (3 Ibs)
Dimensjoner (bredde x dybde x høyde)(imperial)	269,2 x 213,4 x 44,2 mm (10.6 x 8.4 x 1.74")

CISCO Catalyst 2960C 8GE 1xDual Up LAN Base

CISCO Catalyst 2960C 8GE 1xDual Up LAN Base

Cisco Catalyst 3560-C and 2960-C Series Compact Switches

Styringsfunksjoner

Tilkoblingsevne

Nettverksbygging

Optical fiber

Dataoverføring

Sikkerhet

Multicast-egenskaper

Protokoller

Design

Ytelse

Energihåndtering

Power over Ethernet (PoE)

Miljømessige forhold

Vekt og dimensjoner

Andre funksjoner

Intility Sales Advisory

Linker

Social
