Name: CISCO - CATALYST 2960-X 48 GIGE POE 370W, 4 X 1G SFP, LAN BASE
Brand: CISCO
SKU: 6550185
Availability: PreOrder

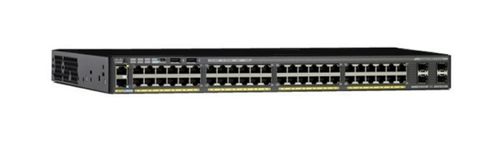

CISCO CATALYST 2960-X 48 GIGE POE 370W, 4 X 1G SFP, LAN BASE

Varenr.:

WS-C2960X-48LPS-L

EAN:

882658554384

Produkt Håndtert
Porter 48
Hastighet 1Gbps

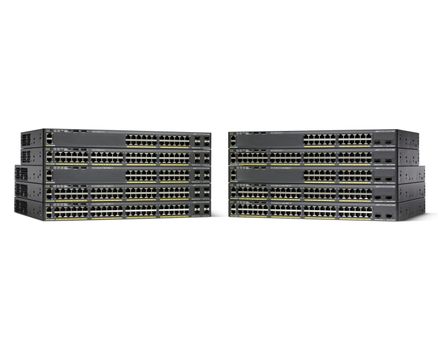

Cisco Catalyst 2960-X Series Switches

Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.

Cisco Catalyst 2960-X switches feature:
• 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
• Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
• FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
• Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
• Reduced power consumption and advanced energy management features
• USB and Ethernet management interfaces for simplified operations
• Application visibility and capacity planning with integrated NetFlow-Lite
• LAN Base or LAN Lite Cisco IOS® software features
• Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement

Cisco Catalyst 2960-XR models also offer:
• Power resiliency with optional dual field-replaceable power supplies
• IP Lite Cisco IOS® software with dynamic routing and Layer 3 features

Model	10/100/1000 Ethernet Ports	Uplink Interfaces	Cisco IOS Software Image	Available PoE Power	FlexStack-Plus Capability
Cisco Catalyst 2960X-48FPD-L	48	2 SFP+	LAN Base	740W	Y
Cisco Catalyst 2960X-48LPD-L	48	2 SFP+	LAN Base	370W	Y
Cisco Catalyst 2960X-24PD-L	24	2 SFP+	LAN Base	370W	Y
Cisco Catalyst 2960X-48TD-L	48	2 SFP+	LAN Base	-	Y
Cisco Catalyst 2960X-24TD-L	24	2 SFP+	LAN Base	-	Y
Cisco Catalyst 2960X-48FPS-L	48	4 SFP	LAN Base	740W	Y
Cisco Catalyst 2960X-48LPS-L	48	4 SFP	LAN Base	370W	Y
Cisco Catalyst 2960X-24PS-L	24	4 SFP	LAN Base	370W	Y
Cisco Catalyst 2960X-24PSQ-L	24 (8PoE)	2 SFP, 2 10/100/1000BT	LAN Base	92W
Cisco Catalyst 2960X-48TS-L	48	4 SFP	LAN Base	-	Y
Cisco Catalyst 2960X-24TS-L	24	4 SFP	LAN Base	-	Y
Cisco Catalyst 2960X-48TS-LL	48	2 SFP	LAN Lite	-	-
Cisco Catalyst 2960X-24TS-LL	24	2 SFP	LAN Lite	-	-

Model	10/100/1000 Ethernet Ports	Uplink Interfaces	Cisco IOS Software Image	Available PoE Power	Power Supply
Cisco Catalyst 2960XR-48FPD-I	48	2 SFP+	IP Lite	740W	1025WAC
Cisco Catalyst 2960XR-48LPD-I	48	2 SFP+	IP Lite	370W	640WAC
Cisco Catalyst 2960XR-24PD-I	24	2 SFP+	IP Lite	370W	640WAC
Cisco Catalyst 2960XR-48TD-I	48	2 SFP+	IP Lite	-	250WAC
Cisco Catalyst 2960XR-24TD-I	24	2 SFP+	IP Lite	-	250WAC
Cisco Catalyst 2960XR-48FPS-I	48	4 SFP	IP Lite	740W	1025WAC
Cisco Catalyst 2960XR-48LPS-I	48	4 SFP	IP Lite	370W	640WAC
Cisco Catalyst 2960XR-24PS-I	24	4 SFP	IP Lite	370W	640WAC
Cisco Catalyst 2960XR-48TS-I	48	4 SFP	IP Lite	-	250WAC
Cisco Catalyst 2960XR-24TS-I	24	4 SFP	IP Lite	-	250WAC

Styringsfunksjoner

Svitsjtype

Håndtert

Strømbryterbelegg

L2/L3

Quality of Service (QoS) støtte

Webbasert administrasjon

ARP-inspeksjon

MIB-støtte

Tilkoblingsevne

Antall Basic switching RJ-45 Ethernet-ports

Basic switching RJ-45 Ethernet ports-type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (kobber) antall porter

SFP module antall spor

Konsollport

RJ-45

Antall USB 2.0-porter

Nettverksbygging

Nettverksstandard

IEEE 802.1ab,IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ah,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z

10G støtte

Full tosidig

Linkaggregasjon/Linksamling

Kringkasting stormkontroll

Omfangsbegrensning

Auto MDI/MDI-X

Treprotokoll (spekter)

VLAN støtte

Antall VLAN

1023

Dataoverføring

Størrelse på adressetabell

16000 oppføringer

Ruting/svitsjekapasitet

216 Gbit/s

Gjennomstrømming

107,1 Mpps

Antall køer

Antall statiske ruter

1000

Jumbo Frames-støtte

Jumbo rammer

9216

Sikkerhet

DHCP-funksjoner

DHCP server

Access Control List (ACL)/tilgangskontrolliste

Access Control List (ACL) regler

IGMP-snooping

Sikkerhetsalgoritmer

802.1x RADIUS,SNMP,SSH

SSH/SSL støtte

Autentisering

MAC-basert autentisering, Portbasert autentisering

Multicast-egenskaper

Multicast-støtte

Antall multifrekvensgrupper filtrert

1000

Protokoller

Ledelsesprotokoller/håndteringsprotokoller

SNMPv3

Switch-protokoll

UDP, TCP, RADIUS/TACACS+

Design

Rack-montering

Kan stables

Formfaktor

Produktfarge

Sort

LED-indikatorer

Sikkerhet

UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1

Ytelse

Fysisk stabling (enheter)

Innebygd prosessor

Prosessormodell

AppliedMicro APM8639

Prosessorfrekvens

600 MHz

Minnetype

DRAM

Internminne

512 MB

Flash-minne

128 MB

Støynivå

39 dB

Gjennomsnittstid mellom feil (MTBF)

276870 timer

Energihåndtering

Redundant strømforsyning

Antall strømforsyninger

AC-inngangsspenning

100 - 240 V

AC-inngangsfrekvens

50 - 60 Hz

Innput-strøm

5 A

Strømforbruk (vanlig bruk)

60,9 W

Power over Ethernet (PoE)

Strøm over Ethernet (PoE)

Power over Ethernet (PoE)-ports, antall

Antall Power over Ethernet plus (PoE+)-ports

Total Power over Ethernet (PoE)-budsjett

370 W

Miljømessige forhold

Driftstemperatur (T-T)

-5 - 40 °C

Oppbevaringstemperaturomåde (Celsius)

-25 - 70 °C

Relativ luftfuktighet under drift (H-H)

10 - 95%

Lagringsrelativ fuktighet

10 - 95%

Driftshøyde

0 - 3000 m

Høyde når uvirksom

0 - 4000 m

Vekt og dimensjoner

Bredde

445 mm

Dybde

368 mm

Høyde

45 mm

Vekt

5,8 kg

Datainnpakking

Kabler inkludert

Bruksanvisning

Andre funksjoner

Strøm-LED
