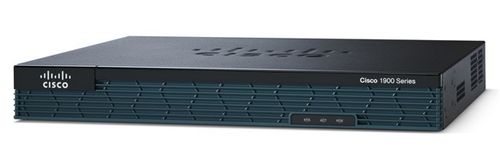

CISCO C1921 Modular Router, 2GE, 2 EHWIC slots

Forsiden / Nettverksutstyr / Rutere & Brannmurer / CISCO C1921 Modular Router, 2GE, 2 EHWIC slots
Du må logge inn for å handle/se priser.
CISCO C1921 Modular Router, 2GE, 2 EHWIC slots (CISCO1921/K9)
CISCO C1921 Modular Router, 2GE, 2 EHWIC slots (CISCO1921/K9)
CISCO C1921 Modular Router, 2GE, 2 EHWIC slots (CISCO1921/K9)
CISCO C1921 Modular Router, 2GE, 2 EHWIC slots (CISCO1921/K9)

CISCO C1921 Modular Router, 2GE, 2 EHWIC slots

Varenr.:
CISCO1921/K9
EAN:
0882658343179
Intility: På lager Distributør: Ikke på lager

Cisco 1921 Series Integrated Services Routers

Cisco® 1900 Series Integrated Services Routers (ISRs) build on 25 years of Cisco innovation and product leadership. The new platforms are architected to enable the next phase of branch-office evolution, providing rich-media collaboration to the branch office while maximizing operational cost savings. The Cisco Integrated Services Routers Generation 2 (ISR G2) platforms are future-enabled with multicore CPUs, Gigabit Ethernet switching with enhanced Power over Ethernet (PoE), and new energy monitoring and control capabilities that enhance overall system performance. Additionally, a new Cisco IOS® Software Universal image enables you to decouple the deployment of hardware and software, providing a stable technology foundation that can quickly adapt to evolving network requirements. Overall, the Cisco 1900 Series offers exceptional total cost of ownership (TCO) savings and network agility through the intelligent integration of market-leading security, unified communications, wireless, and application services.

The Cisco 1921 builds on the best-in-class offering of the Cisco 1841 Integrated Services Routers. All Cisco 1900 Series Integrated Services Routers offer embedded hardware encryption acceleration, optional firewall, intrusion prevention, and advanced security services. In addition, the platforms support the industry's widest range of wired and wireless connectivity options such as Serial, T1/E1, xDSL, Gigabit Ethernet, and third-generation (3G) wireless

Benefits

Description

Service integration

• The Cisco 1921 offers increased levels of services integration with data, security, wireless, and mobility services, enabling greater efficiencies and cost savings.

Services on demand

• A single Cisco IOS Software Universal image is installed on each ISR G2. The Universal image contains all of the Cisco IOS Software technology sets that can be activated with a software license, allowing your business to quickly deploy advanced features without downloading a new Cisco IOS Software image. Additionally, larger default memory is included to support the new capabilities.

High performance with integrated services

• The Cisco 1900 Series enables deployment in high-speed WAN environments with concurrent services enabled up to 15 Mbps.

Network agility

• Designed to address customer business requirements, the Cisco 1921 with the modular architecture offers a performance range of modular interfaces and services as your network needs grow.
• Modular interfaces offer increased bandwidth, a diversity of connection options, and network resiliency.

Energy efficiency

• The Cisco 1921 architecture provides energy-savings features that include the following:
• The Cisco 1900 Series offers intelligent power management and allows you to control power to the modules based on the time of day. Cisco EnergyWise technology will be supported in the future.
• Services integration and modularity on a single platform performing multiple functions optimizes raw-materials consumption and energy usage.
• Platform flexibility and ongoing development of both hardware and software capabilities lead to a longer product lifecycle, lowering all aspects of the TCO, including materials and energy use.
• High-efficiency power supplies are provided with each platform.
• DC Power option available (CISCO1921DC/K9).

Investment protection

• The Cisco 1921 maximizes investment protection:
• Reuse of a broad array of existing modules supported on the original ISRs provides a lower TCO.
• A rich set of Cisco IOS Software features is carried forward from the original ISRs and delivered in the Universal image.
• This router gives you the flexibility to grow as your business needs evolve.

WAN forbindelse

Ethernet WAN

Nettverksbygging

NettverksstandardIEEE 802.1Q,IEEE 802.3,IEEE 802.3ah,IEEE 802.3u
Ethernet interface typeGigabit Ethernet
Ethernet/bredbåndsforbindelse
Kablingsteknologi10/100/1000Base-T(X)
Ethernet LAN dataoverføringshastigheter10,100,1000 Mbit/s
Full dupleks

Styringsfunksjoner

Webbasert administrasjon
Quality of Service (QoS) støtte

Tilkoblingsevne

Antall ethernets-/bredbåndstilkoblinger (RJ-45)2
Antall USB-porter1
DC-inngangskontakt

Protokoller

RouterprotokollBGP,IP,IS-IS,MPLS,OSPF
Ledelsesprotokoller/håndteringsprotokollerQoS, CBWFQ, WRED, PBR, PfR, NBAR
Støttede nettverksprotokollerIPv4, IPv6, IGMPv3

Sikkerhet

Sikkerhetsalgoritme støttet3DES,DES,WPA-AES
MAC adressefiltrering

Egenskaper

Innebygd prosessor
Flash-minne256 MB
Internminne512 MB
SikkerhetUL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1
Elektromagnetisk kompatibilitet47 CFR Part 15, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI V-3, EN 300-386, EN 61000 (Immunity), EN 55024, CISPR 24, EN50082-1

Design

ProduktfargeFlerfarget
Rack-montering
Rack-kapasitet1U
LED-indikatorer for kommunikasjonJa

Energihåndtering

Strømforbruk60 W
StrømkildetypeAC
AC inngangspenning100 - 240 V
Vekselstrøm frekvens47 - 63 Hz
Output-strøm1,5 A

Miljømessige forhold

Driftstemperaturområde0 - 40 °C
Oppbevaringstemperaturomåde (Celsius)-40 - 70 °C
Luftfuktighetsområde ved drift5 - 85%
Luftfuktighet, uvirksom5 - 95%
Driftshøyde0 - 3000 m
Høyde når uvirksom0 - 4570 m

Vekt og dimensjoner

Bredde342,9 mm
Dybde292,1 mm
Høyde44,5 mm
Vekt3,06 kg
