Item |
Specification |
|
Part Numbers |

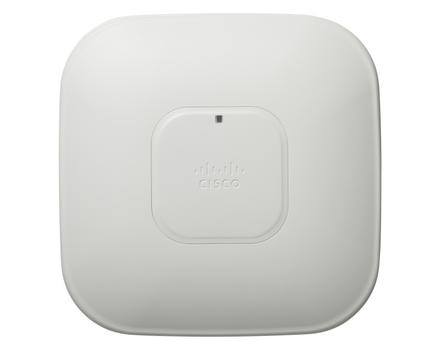

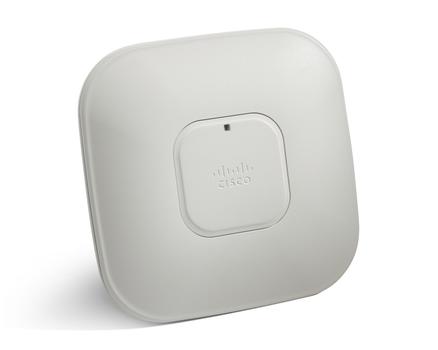

The Cisco Aironet 3600i Access Point: Indoor environments, with internal antennas
• AIR-CAP3602I-x-K9 - Dual-band controller-based 802.11a/g/n
• AIR-CAP3602I-xK910 - Eco-pack (dual-band 802.11a/g/n) 10 quantity access points
The Cisco Aironet 3600e Access Point: Indoor, challenging environments, with external antennas
• AIR-CAP3602E-x-K9 - Dual-band controller-based 802.11a/g/n
• AIR-CAP3602E-xK910 - Eco-pack (dual-band 802.11a/g/n) 10 quantity access points
Cisco SMARTnet® Services for the Cisco Aironet 3600i Access Point with internal antennas
• CON-SNT-CAP362Ix - SMARTnet 8x5xNBD 3600i access point (dual-band 802.11 a/g/n)
• Qty(10) CON-SNT-CAP362Ix - SMARTnet 8x5xNBD 10 quantity eco-pack 3600i access point (dual-band 802.11a/g/n)
SMARTnet Services for the Cisco Aironet 3600e Access Point with external antennas
• CON-SNT-CAP3602x - SMARTnet 8x5xNBD 3600e access point (dual-band 802.11 a/g/n)
• Qty(10) CON-SNT-CAP3602x - SMARTnet 8x5xNBD 10 quantity eco-pack 3600e access point (dual-band 802.11a/g/n)
Cisco Wireless LAN Services
• AS-WLAN-CNSLT -
Cisco Wireless LAN Network Planning and Design Service
• AS-WLAN-CNSLT -
Cisco Wireless LAN 802.11n Migration Service
• AS-WLAN-CNSLT -
Cisco Wireless LAN Performance and Security Assessment Service
Regulatory domains: (x = regulatory domain)
Customers are responsible for verifying approval for use in their individual countries.
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List. |
|
Software |
Cisco Unified Wireless Network Software Release 7.2 or later. |
|
Supported Wireless LAN Controllers |
• 2500 series, WLCM on SRE for ISR G2, WiSM2, 5500 Series, Flex 7500 Series |
|
802.11n Version 2.0 (and Related) Capabilities |
• 4x4 multiple-input multiple-output (MIMO) with three spatial streams
• Maximal ratio combining (MRC)
• 802.11n and 802.11a/g beamforming
• 20- and 40-MHz channels
• PHY data rates up to 450 Mbps (40-MHz with 5 Ghz)
• Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
• 802.11 dynamic frequency selection (DFS)
• Cyclic shift diversity (CSD) support |
|
Data Rates Supported |
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps |
|
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
|
802.11n data rates (2.4 GHz and 5 GHz): |
|
MCS Index
1 |
GI
2 = 800ns |
GI = 400ns |
|
20-MHz Rate (Mbps) |
40-MHz Rate (Mbps) |
20-MHz Rate (Mbps) |
40-MHz Rate (Mbps) |
|
0 |
6.5 |
13.5 |
7.2 |
15 |
|
1 |
13 |
27 |
14.4 |
30 |
|
2 |
19.5 |
40.5 |
21.7 |
45 |
|
3 |
26 |
54 |
28.9 |
60 |
|
4 |
39 |
81 |
43.3 |
90 |
|
5 |
52 |
108 |
57.8 |
120 |
|
6 |
58.5 |
121.5 |
65 |
135 |
|
7 |
65 |
135 |
72.2 |
150 |
|
8 |
13 |
27 |
14.4 |
30 |
|
9 |
26 |
54 |
28.9 |
60 |
|
10 |
39 |
81 |
43.3 |
90 |
|
11 |
52 |
108 |
57.8 |
120 |
|
12 |
78 |
162 |
86.7 |
180 |
|
13 |
104 |
216 |
115.6 |
240 |
|
14 |
117 |
243 |
130 |
270 |
|
15 |
130 |
270 |
144.4 |
300 |
|
16 |
19.5 |
40.5 |
21.7 |
45 |
|
17 |
39 |
81 |
43.3 |
90 |
|
18 |
58.5 |
121.5 |
65 |
135 |
|
19 |
78 |
162 |
86.7 |
180 |
|
20 |
117 |
243 |
130 |
270 |
|
21 |
156 |
324 |
173.3 |
360 |
|
22 |
175.5 |
364.5 |
195 |
405 |
|
23 |
195 |
405 |
216.7 |
450 |
|
Frequency Band and 20-MHz Operating Channels |
A (A regulatory domain):
• 2.412 to 2.462 GHz; 11 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
• 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
I (I regulatory domain):
• 2.412 to 2.472 GHz, 13 channels
• 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.500 to 5.620 GHz, 7 channels
• 5.745 to 5.805 GHz, 4 channels |
N (N regulatory domain):
• 2.412 to 2.462 GHz; 11 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.180 to 5.320 GHz; 8 channels
• 5,660 to 5,805 GHz, 7 channels
S (S regulatory domain):
• 2.412 to 2.472 GHz; 13 channels
• 5.180 to 5.320 GHz; 8 channels
• 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
• 2.412 to 2.462 GHz; 11 channels
• 5.280 to 5.320 GHz; 3 channels
• 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
• 5.745 to 5.825 GHz; 5 channels |
|
Note: Customers are responsible for verifying approval for use in their individual countries. |
|
Maximum Number of Nonoverlapping Channels |
2.4 GHz
• 802.11b/g:
• 20 MHz: 3
• 802.11n:
• 20 MHz: 3 |
5 GHz
• 802.11a:
• 20 MHz: 21
• 802.11n:
• 20 MHz: 21
• 40 MHz: 9 |
|
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
|
Receive Sensitivity |
• 802.11b (CCK)
• -101 dBm @ 1 Mb/s
• -98 dBm @ 2 Mb/s
• -92 dBm @ 5.5 Mb/s
• -89 dBm @ 11 Mb/s |
• 802.11g (non HT20)
• -91 dBm @ 6 Mb/s
• -91 dBm @ 9 Mb/s
• -91 dBm @ 12 Mb/s
• -90 dBm @ 18 Mb/s
• -87 dBm @ 24 Mb/s
• -85 dBm @ 36 Mb/s
• -80 dBm @ 48 Mb/s
• -79 dBm @ 54 Mb/s |
• 802.11a (non HT20)
• -90 dBm @ 6 Mb/s
• -90 dBm @ 9 Mb/s
• -90 dBm @ 12 Mb/s
• -89 dBm @ 18 Mb/s
• -86 dBm @ 24 Mb/s
• -83 dBm @ 36 Mb/s
• -78 dBm @ 48 Mb/s
• -77 dBm @ 54 Mb/s |
| |
2.4-GHz
• 802.11n (HT20)
• -90 dBm @ MCS0
• -90 dBm @ MCS1
• -90 dBm @ MCS2
• -88 dBm @ MCS3
• -85 dBm @ MCS4
• -80 dBm @ MCS5
• -78 dBm @ MCS6
• -77 dBm @ MCS7
• -90 dBm @ MCS8
• -90 dBm @ MCS9
• -89 dBm @ MCS10
• -86 dBm @ MCS11
• -82 dBm @ MCS12
• -78 dBm @ MCS13
• -77 dBm @ MCS14
• -75 dBm @ MCS15
• -90 dBm @ MCS16
• -89 dBm @ MCS17
• -87 dBm @ MCS18
• -84 dBm @ MCS19
• -81 dBm @ MCS20
• -76 dBm @ MCS21
• -75 dBm @ MCS22
• -74 dBm @ MCS23 |
|
5-GHz
• 802.11n (HT20)
• -91 dBm @ MCS0
• -90 dBm @ MCS1
• -89 dBm @ MCS2
• -86 dBm @ MCS3
• -83 dBm @ MCS4
• -78 dBm @ MCS5
• -77 dBm @ MCS6
• -75 dBm @ MCS7
• -91 dBm @ MCS8
• -89 dBm @ MCS9
• -87 dBm @ MCS10
• -84 dBm @ MCS11
• -80 dBm @ MCS12
• -76 dBm @ MCS13
• -75 dBm @ MCS14
• -73 dBm @ MCS15
• -90 dBm @ MCS16
• -88 dBm @ MCS17
• -85 dBm @ MCS18
• -82 dBm @ MCS19
• -79 dBm @ MCS20
• -74 dBm @ MCS21
• -73 dBm @ MCS22
• -72 dBm @ MCS23 |
5-GHz
• 802.11n (HT40)
• -88 dBm @ MCS0
• -87 dBm @ MCS1
• -86 dBm @ MCS2
• -82 dBm @ MCS3
• -80 dBm @ MCS4
• -75 dBm @ MCS5
• -73 dBm @ MCS6
• -72 dBm @ MCS7
• -88 dBm @ MCS8
• -86 dBm @ MCS9
• -84 dBm @ MCS10
• -80 dBm @ MCS11
• -77 dBm @ MCS12
• -73 dBm @ MCS13
• -71 dBm @ MCS14
• -70 dBm @ MCS15
• -87 dBm @ MCS16
• -84 dBm @ MCS17
• -82 dBm @ MCS18
• -78 dBm @ MCS19
• -75 dBm @ MCS20
• -71 dBm @ MCS21
• -69 dBm @ MCS22
• -68 dBm @ MCS23 |
|
Maximum Transmit Power |
2.4 GHz
• 802.11b
• 23 dBm - 4 Antennas
• 802.11g
• 23 dBm - 4 Antennas
• 802.11n (HT20)
• 23 dBm - 4 Antennas |
5 GHz
• 802.11a
• 23 dBm - 4 Antennas
• 802.11n (HT20)
• 23 dBm - 4 Antennas
• 802.11n (HT40)
• 23 dBm - 4 Antennas |
|
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
|
Available Transmit Power Settings |
2.4 GHz
• 23 dBm (200 mW)
• 20 dBm (100 mW)
• 17 dBm (50 mW)
• 14 dBm (25 mW)
• 11 dBm (12.5 mW)
• 8 dBm (6.25 mW)
• 5 dBm (3.13 mW)
• 2 dBm (1.56 mW) |
5 GHz
• 23 dBm (200 mW)
• 20 dBm (100 mW)
• 17 dBm (50 mW)
• 14 dBm (25 mW)
• 11 dBm (12.5 mW)
• 8 dBm (6.25 mW)
• 5 dBm (3.13 mW)
• 2 dBm (1.56 mW) |
|
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. |
|
Integrated Antenna |
• 2.4 GHz, Gain 2 dBi, internal Omni, horizontal beamwidth 360°
• 5 GHz, Gain 5 dBi, internal Omni, horizontal beamwidth 360° |
|
External Antenna (Sold Separately) |
• Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz).
• Cisco offers the industry's broadest selection of
802.11n antennas delivering optimal coverage for a variety of deployment scenarios. |
|
Interfaces |
• 10/100/1000BASE-T autosensing (RJ-45)
• Management console port (RJ-45) |
|
Indicators |
• Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|
Dimensions
(W x L x H) |
• Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm) |
|
Weight |
• 2.5 lbs (1.13 kg) |
|
Environmental |
Cisco Aironet 3600i
• Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
• Nonoperating (storage) Altitude Test - 25°C, 15,000 ft.
• Operating temperature: 32 to 104°F (0 to 40°C)
• Operating humidity: 10 to 90% percent (noncondensing)
• Operating Altitude Test - 40°C, 9843 ft.
Cisco Aironet 3600e
• Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)
• Nonoperating (storage) Altitude Test - 25°C, 15,000 ft.
• Operating temperature: -4 to 131°F (-20 to 55°C)
• Operating humidity: 10 to 90 percent (noncondensing)
• Operating Altitude Test - 40°C, 9843 ft. |
|
System Memory |
• 128 MB DRAM
• 32 MB flash |
|
Input Power Requirements |
• AP3600: 44 to 57 VDC
• Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz |
|
Powering Options |
• 802.3af Ethernet Switch
• Cisco AP3600 Power Injectors (AIR-PWRINJ4=)
• Cisco AP3600 Local Power Supply (AIR-PWR-B=) |
|
Power Draw |
• AP3600: 12.95 W
Note: When deployed using Power over Ethernet (PoE), the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W. |
|
Warranty |
Limited Lifetime Hardware Warranty |
|
Compliance Standards |
• UL 60950-1
• CAN/CSA-C22.2 No. 60950-1
• UL 2043
• IEC 60950-1
• EN 60950-1
• EN 50155
• Radio approvals:
• FCC Part 15.247, 15.407
• RSS-210 (Canada)
• EN 300.328, EN 301.893 (Europe)
• ARIB-STD 66 (Japan)
• ARIB-STD T71 (Japan)
• EMI and susceptibility (Class B)
• FCC Part 15.107 and 15.109
• ICES-003 (Canada)
• VCCI (Japan)
• EN 301.489-1 and -17 (Europe)
• EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
• IEEE Standard:
• IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d
• Security:
• 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
• 802.1X
• Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
• EAP Type(s):
• Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
• EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
• Protected EAP (PEAP) v0 or EAP-MSCHAPv2
• Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)
• PEAPv1 or EAP-Generic Token Card (GTC)
• EAP-Subscriber Identity Module (SIM)
• Multimedia:
• Wi-Fi Multimedia (WMM™)
• Other:
• FCC Bulletin OET-65C
• RSS-102 |
