APC S Uninterruptible Power
Du må logge inn for å handle/se priser.
|
|
APC S Uninterruptible Power
-
Kapasitet
1.5kVA
-
Produkt
Ekstern UPS
|
Beskrivelse
Spesifikasjoner

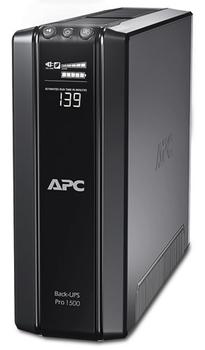

Back-UPS RS 1500VA
BR1500
APC Back-UPS RS, 1500VA/865W, Input 120V/Output 120V, Interface Port USB, Extended runtime model, Rack Height 2 U
Includes: CD with software, Cord Management Straps, Free trial of anti-virus : firewall : email privacy : system recovery and online backup software, USB cable, User Manual
Features
Serial Connectivity
Output
Output Power Capacity
865 Watts / 1500 VA
Max Configurable Power
865 Watts / 1500 VA
Nominal Output Voltage
120V
Output Connections
| (2) NEMA 5-15R (Surge Protection) |
|
| (6) NEMA 5-15R (Battery Backup) |
|
Input
Nominal Input Voltage
120V
Input Frequency
47 - 63 Hz
Cord Length
6 feet ( 1.83 meters)
Input voltage range for main operations
88 - 148V
Input voltage adjustable range for mains operation
78 - 152V
Batteries & Runtime
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules
1
Typical recharge time
8 hour(s)
Replacement battery cartridge
RBC33
Typical Backup Time
at Half Load
12.4 minutes (432.5 Watts)
Typical Backup Time
at Full Load
3.7 minutes (865 Watts)
Runtime Chart
Back-UPS RS
Extended Run Options
Back-UPS RS 1500VA
Communications & Management
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating
420 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Dataline protection
RJ-11 Modem/Fax/DSL protection (two wire single line),RJ45 10 Base-T Ethernet protection
Physical
Maximum Height
14.60 inches (371 mm)
Maximum Width
3.40 inches ( 86 mm)
Maximum depth
13.10 inches (333 mm)
Net Weight
25.00 lbs. ( 11.36 kg)
Shipping Weight
26.00 lbs. ( 11.82 kg)
Shipping Height
17.90 inches (455 mm)
Shipping Width
8.00 inches (203 mm)
Shipping Depth
16.40 inches (417 mm)
SCC Codes
1073130419314 9
Environmental
Operating Environment
32 - 104 °F (0 - 40 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
23 - 113 °F (-5 - 45 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Audible noise at 1 meter from surface of unit
45 dBA
Online Thermal Dissipation
180 BTU/hr
Conformance
Regulatory Approvals
cUL Listed,FCC Part 15 Class B,FCC Part 68,UL 1449,UL 1778,UL Listed
Standard Warranty
2 years repair or replace
Equipment protection policy
Lifetime : $150000
| Output strømkapasitet (VA) | 1,5 kVA |
| Utgangseffekt | 865 W |
| Strømstøt energivurdering | 180 J |
| Støynivå | 45 dB |
| Normal backuptid ved full belastning | 3,7 min |
| Normal backuptid ved halv belastning | 12,7 min |
| Utbyttbare batteripatroner | RBC33 |
| Produktfarge | Beige |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Oppbevaringstemperaturomåde (Celsius) | -5 - 45 °C |
| Relativ luftfuktighet under drift (H-H) | 0 - 95% |
| Lagringsrelativ fuktighet | 0 - 95% |
| Sertifisering | A-tick,C-tick,CE,GOST,VDE |
| Vekt | 11,6 kg |
| Batteritype | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Videoopptaksgrensesnitt | USB |

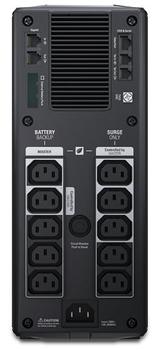

| Output-forbindelser | (2) IEC 320 C13 (Surge Protection)
(6) IEC 320 C13 (Battery Backup) |
| Innput-forbindelsestype | IEC-320 C14 |
| Dimensjoner (B x D x H) | 86 x 333 x 371 mm |
| Nominell outputspenning | 230 V |
| Nominell innputspenning | 230 V |
